Tempesta 20

High End: Rousing. Exceptional for music and cinema reproduction.

The top expression of our Tempesta series.
Made to master both worlds: two channel audiophile and high power home theater. It has the finesse and presence for the serious music listener and the power and dynamics for the film lover.

Specifications

• 2-Ways loudspeaker
• High efficiency
• Floor ported Bass-Reflex
• Resonance and flow optimised divergent bass reflex tunnel
• Separate chamber for the crossover

Components


• 1” Compression Driver with Mylar membrane
• 20cm (8") P2F® Paper Woofer
• Gold plated tellurium copper terminals

Features


• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearization for the crossover frequency
• Flat impedance curve
• Tube Friendly
• 5 years Warranty

Technical Data

Tempesta 20Tempesta 17
MaterialMaterialMaterialeBirch plywoodBirke MultiplexMultistrato di betullaMDF
ThicknessMaterialdickeSpessore25mm / 1"19mm / 0,75"
Internal BracingVerstrebungIrrigidimentoYesJaSiNo
Cross over chamberKammer für FrequenzweicheVolume separato per filtroYesJaSiYesJaSi
Frequency rangeFrequenzgangRisposta in frequenza40Hz - 20kHz ± 2dB45Hz - 20kHz ± 2dB
Bass CabinetBass GehäuseCabinet dei bassiDivergent
Bass Reflex
Divergentes
Bass Reflex
Bass Reflex
divergente
Divergent
Bass Reflex
Divergentes
Bass Reflex
Bass Reflex
divergente
PortingBass ReflexCanaleFloorZum BodenA pavimentoFloorZum BodenA pavimento
WooferTiefmitteltönerWoofer200mm / 8"170mm / 6,5"
MaterialMaterialMaterialePaper
P2F® Sandwich
Papier
P2F® Sandwich
Carta
Sandwich P2F®
Peek-Carbon
P2C® Sandwich
Cross over frequencyÜbergangsfrequenzFrequenza di taglio1200 Hz1800 Hz
MidhighMittelhochtönerMedioaltiCompression driverKompressionstreiberDriver a compressioneCompression driverKompressionstreiberDriver a compressione
Horn ThroatHornDiametro tromba1"1"
Membrane dimensionsMembranendimensionDimensione Membrana44mm / 1,75" 35mm / 1,4"
MaterialMaterialMaterialeMylarMylar
Max power inputBelastbarkeitPotenza massima (RMS)150 W RMS100 W RMS
EfficiencyWirkungsgradEfficienza92 dB90 dB
ImpedanceImpedanzImpedenza8 Ohm8 Ohm
Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenzaNoNo
TerminalAnschlussfeldTerminaliBi-WiringSingle-Wiring
MaterialMaterialMaterialeGold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oroGold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro
FeetsFüßePiediAdjustable SpikesRegelbare SpikesSpikes regolabiliAdjustable SpikesRegelbare SpikesSpikes regolabili
DimensionsMaßenDimensioni1165 x 240 x 346 mm
46 x 10 x 14 in
950 x 270 x 248 mm
37,5 x 10,5 x 9,75 in
WeightGewichtPeso27 kg / 60lbs16 kg
Packaging dimensionsVerpackungsmaßenDimensioni imballate140 x 50 x 50 cm
56 x 20 x 20 in
105 x 60 x 38 cm
Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone12
Packaging weightVerpackungsgewichtPeso imballate30 kg / 66lbs35 kg
Center LoudspeakersCenter LautsprecherDiffusori centraliCenter 20Center 17
Center 17Center 15

Note:

In our workshop we can offer true-wood veneers.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.

News about the Genuin FS 3 MK 2

Tempesta 20 on The Ear.net

Penwerk's Review

Norddeutsche HiFi Tage - Hamburg

Il GalĂ  di Spinelli - Milano

Mitteldeutsche HiFi Tage


Dimensions

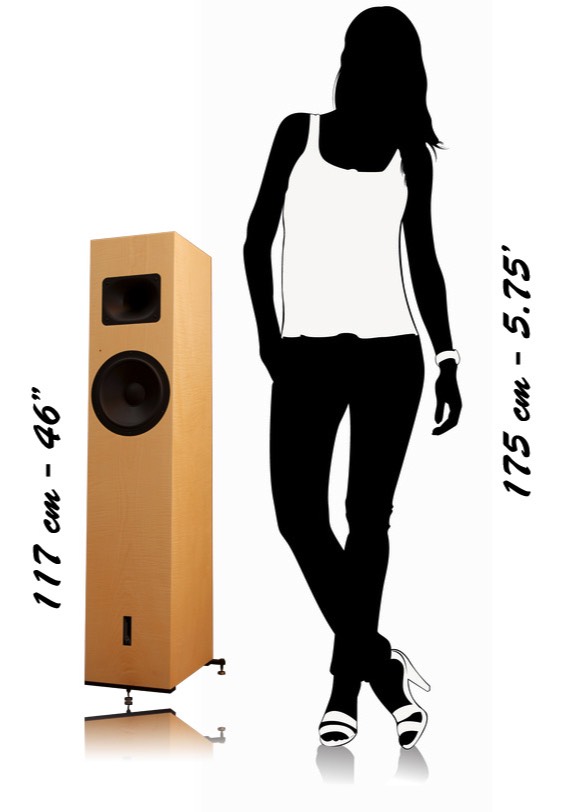

Dimensions of the Tempesta 20
