Center loudspeakers
Perfect voice reproduction, perfect understanding
-
Center 15
Center 15 -
Center 20
Center 20 -

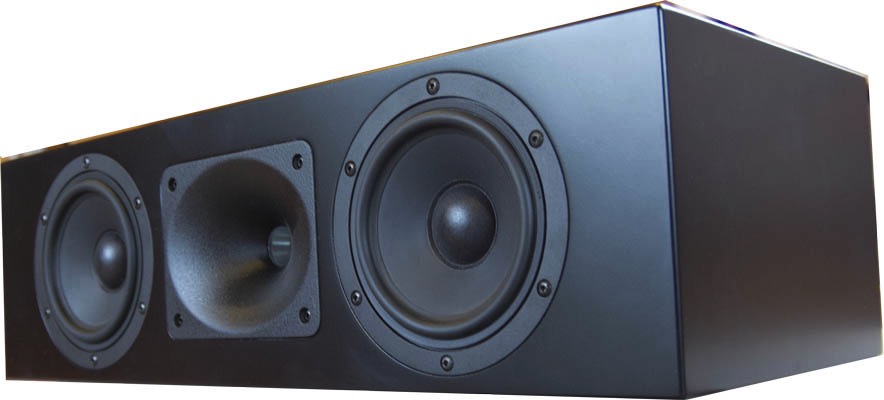

Center 17
Center 17 -
Center 25
Center 25
We put our love for music and our experience in the reproduction of music in our home cinema components as well.
The center speaker has the responsibility to deliver most of the voices of the actors to you. Therefore we think that it is the most important speaker (besides the main speakers) for you to enjoy the film: it must match the main stereo speaker in order to fulfill the home cinema event itself, therefore you will find for each stereo speaker its matching center speaker.
All center loudspeakers are also (on demand) available as in Wall loudspeakers
The center speaker has the responsibility to deliver most of the voices of the actors to you. Therefore we think that it is the most important speaker (besides the main speakers) for you to enjoy the film: it must match the main stereo speaker in order to fulfill the home cinema event itself, therefore you will find for each stereo speaker its matching center speaker.
All center loudspeakers are also (on demand) available as in Wall loudspeakers
| Center 25 | Center 20 | Center 17 | Center 15 | |||
|---|---|---|---|---|---|---|
 |  |  |  | |||
| MaterialMaterialMateriale | Birch plywoodBirke MultiplexMultistrato di betulla | Birch plywoodBirke MultiplexMultistrato di betulla | MDF | MDF | ||
| ThicknessMaterialdickeSpessore | 25mm / 1" | 25mm / 1" | 19mm / 0,75" | 19mm / 0,75" | ||
| Frequency rangeFrequenzgangRisposta in frequenza | 35Hz - 20kHz ± 2dB | 50Hz - 20kHz ± 2dB | 60Hz - 20kHz ± 2dB | 60Hz - 20kHz ± 2dB | ||
| Bass CabinetBass GehäuseCabinet dei bassi | Bass Reflex | Bass Reflex | Closed cabinetGeschlossenes GehäuseCabinet chiuso | Closed cabinetGeschlossenes GehäuseCabinet chiuso | ||
| PortingBass ReflexCanale | RearNach hintenPosteriore | RearNach hintenPosteriore | No | No | ||
| WooferTiefmitteltönerWoofer | 2x 250mm / 10" | 2x 200mm / 8" | 2x 170mm / 6,5" | 2x 150mm / 5" | ||
| Woofer membraneBassmembraneMembrana del woofer | Paper P2F® SandwichPapier P2F® SandwichCarta Sandwich P2F® | Paper P2F® SandwichPapier P2F® SandwichCarta Sandwich P2F® | Peek-Carbon P2C® Sandwich | Peek-Carbon P2C® Sandwich | ||
| Cross over frequencyÜbergangsfrequenzFrequenza di taglio | 1100 Hz | 1150 Hz | 1800 Hz | 1800 Hz | ||
| MidhighMittelhochtönerMedioalti | Compression driverKompressionstreiberDriver a compressione | Compression driverKompressionstreiberDriver a compressione | Compression driverKompressionstreiberDriver a compressione | Compression driverKompressionstreiberDriver a compressione | ||
| Horn ThroatHornDiametro tromba | 1.4" | 1" | 1" | 1" | ||
| Tweeter membraneMittelhochtönmembraneMembrana dei medioalti | 75mm / 3" | 44mm / 1,75" | 35mm / 1,4" | 35mm / 1,4" | ||
| MaterialMaterialMateriale | TitaniumTitanTitanio | Mylar | Mylar | Mylar | ||
| Max power input (RMS)Belastbarkeit (RMS)Potenza massima (RMS) | 300 W RMS | 150 W RMS | 100 W RMS | 100 W RMS | ||
| EfficiencyWirkungsgradEfficienza | 94 dB | 92 dB | 88 dB | 88 dB | ||
| ImpedanceImpedanzImpedenza | 4 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | ||
| TerminalAnschlussfeldterminali | Bi-Wiring | Single-Wiring | Single-Wiring | Single-Wiring | ||
| MaterialMaterialMateriale | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | Gold plated copperVergoldetes KupferRame placcato oro | Gold plated copperVergoldetes KupferRame placcato oro | ||
| DimensionsMaßenDimensioni[mm] | 1000 x 500 x 330mm | 670 x 450 x 252 | 600 x 450 x 195 | 570 x 260 x 170 | ||
| DimensionsMaßenDimensioni[Inches] | 39.4 x 19.7 x 13 | 26.4 x 17.7 x 9.9 | 23.6 x 17.7 x 7.7 | 22.5 x 10.2 x 6.7 | ||
 |  |  |  | |||
| WeightGewichtPeso | 45 kg | 30 kg | 25 kg | 10,4 kg | ||
| Packaging dimensionsVerpackungsmaßenDimensioni imballate | 88 x 63 x 38 cm | 69 x 43 x 36 cm | ||||
| Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone | 1 | 1 | 1 | 1 | ||
| Packaging weightVerpackungsgewichtPeso imballate | 50 kg | 32 kg | 28 kg | 12,5 kg | ||
| Related mainsPassende HauptlautsprecherDa abbinare a | Genuin FS 1 | Genuin FS 1 | Genuin FS 3 | Genuin Bookshelf | ||
| Genuin FS 2 | Genuin FS 2 | Genuin Bookshelf | Tempesta 20 | |||
| Genuin FS 3 | Genuin FS 3 | Tempesta 20 | Tempesta 17 | |||
| - | Genuin Bookshelf | Tempesta 17 | Tempesta Bookshelf | |||
| - | Tempesta 20 | Tempesta Bookshelf | - | |||
