Genuin Bookshelf
Need more in compact form? Here the answer to Your needs!
Essentially a Genuin FS 3 MK 2 in a short cabinet. The Genuin Bookshelf is available with an 8" or a 10" woofer. It is charming the way it delivers You any kind of music. A real compact allrounder.
Specifications
• High efficiency
• 2-Ways loudspeaker
• Floor ported Bass-Reflex
• Harmonic construction
• 1” Compression Driver with Mylar membrane
• 8" - 20cm or 10” - 25cm Paper-Woofer
• Gold plated tellurium copper terminals
• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearisation for the crossover frequency
• Flat impedance curve
• Tube Friendly
• Time alignment to the listening spot
• 5 years Warranty
• 2-Ways loudspeaker
Cabinet
• Floor ported Bass-Reflex
• Harmonic construction
Components
• 1” Compression Driver with Mylar membrane
• 8" - 20cm or 10” - 25cm Paper-Woofer
• Gold plated tellurium copper terminals
Features
• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearisation for the crossover frequency
• Flat impedance curve
• Tube Friendly
• Time alignment to the listening spot
• 5 years Warranty
Technical Data
| Tempesta BKS | Mini | |||
|---|---|---|---|---|
| MaterialMaterialMateriale | MDF | MDF | ||
| ThicknessMaterialdickeSpessore | 19mm / 0,75" | 19mm / 0,75" | ||
| Internal BracingVerstrebungIrrigidimento | No | No | ||
| Cross over chamberKammer für FrequenzweicheVolume separato per filtro | No | No | ||
| Frequency rangeFrequenzgangRisposta in frequenza | 50Hz - 20kHz ± 2dB | 60Hz - 20kHz ± 2dB | ||
| Bass CabinetBass GehäuseCabinet dei bassi | Bass reflex | Bass reflex | ||
| PortingBass ReflexCanale | RearNach hintenPosteriore | RearNach hintenPosteriore | ||
| WooferTiefmitteltönerWoofer: | 170mm / 6,5" | 100mm / 4" | ||
| MaterialMaterialMateriale | Peek-Carbon P2C® Sandwich | PaperPapierCarta | ||
| Cross over frequencyÜbergangsfrequenzFrequenza di taglio | 1800 Hz | 6000 Hz | ||
| MidhighMittelhochtönerMedioalti: | Compression driverKompressionstreiberDriver a compressione | DomeKalotteCalotta | ||
| Horn ThroatHornDiametro tromba | 1" | - | ||
| Membrane dimensionsMembranendimensionDimensione Membrana | 35mm / 1,4" | 25mm / 1" | ||
| MaterialMaterialMateriale | Mylar | SilkSeideSeta | ||
| Max power inputBelastbarkeitPotenza massima (RMS) | 100 W RMS | 60 W RMS | ||
| EfficiencyWirkungsgradEfficienza | 90dB | 88dB | ||
| ImpedanceImpedanzImpedenza | 8 Ohm | 6 Ohm | ||
| Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza | No | No | ||
| TerminalAnschlussfeldTerminali | Single-Wiring | Single-Wiring | ||
| MaterialMaterialMateriale | Gold plated brassVergoldetes MessingOttone placcato oro | Single-Wiring gold platedSingle-Wiring vergoldetSingle-Wiring placcato oro | ||
| FeetsFüßePiedi | No | No | ||
| DimensionsMaßenDimensioni [mm] | 480 x 220 x 320 mm 19 x 8,5 x 12,5 in | 280 x140 x270 mm 11 x 5,5 x 10,5 in | ||
| WeightGewichtPeso | 10,5 kg | 5 kg | ||
| Packaging dimensionsVerpackungsmaßenDimensioni imballate | 69 x 43 x 36 cm | 45 x 45 x 42 cm | ||
| Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone | 2 | 2 | ||
| Packaging weightVerpackungsgewichtPeso imballate | 25kg | 12 kg | ||
| Center LoudspeakersCenter LautsprecherDiffusori centrali: | Center 17 | - | ||
| Center 15 | - | |||
| Standard VeneersStandard FurniereFiniture standard: | WalnutWalnussNoce | WalnutWalnussNoce | ||
| Special VeneersSpezial FurniereFiniture speciali: | Dark Walnut, White Opaque, Black OpaqueDunkles Walnuss, Weissmatt, SchwarzmattNoce scuro, bianco opaco, nero opaco | Dark Walnut, White Opaque, Black OpaqueDunkles Walnuss, Weissmatt, SchwarzmattNoce scuro, bianco opaco, nero opaco | ||
| Premium VeneersPremium FurniereFiniture premium: | - | On demandAuf AnfrageSu richiesta | ||
Note:
In our workshop we can offer true-wood veneers.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.

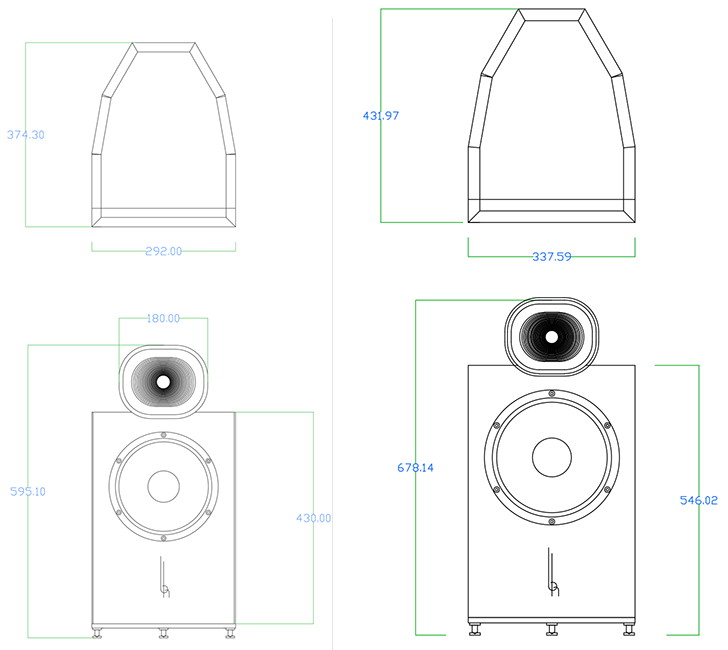

Dimensions
